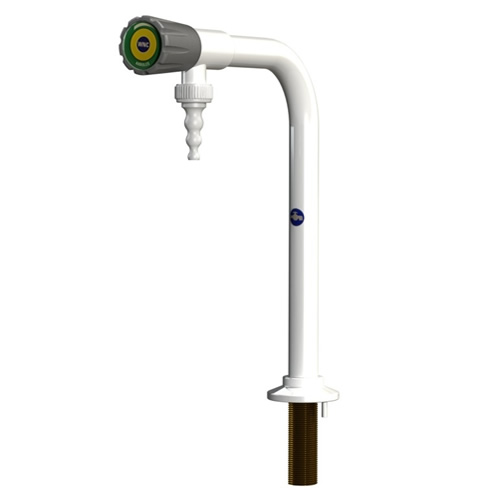

Pillar Bib Lab Tap
Description: Pillar tap with removable serrated nozzles.
Applications: Standard laboratory water tap for all applications where header tank supply is present (Full WRAS approval)
Options: Hot water.
Construction: All brass body, Rilsan plastic coated, white (RAL9016) Chemical resistant plastic ABS handwheel, Identification coding to DIN13792

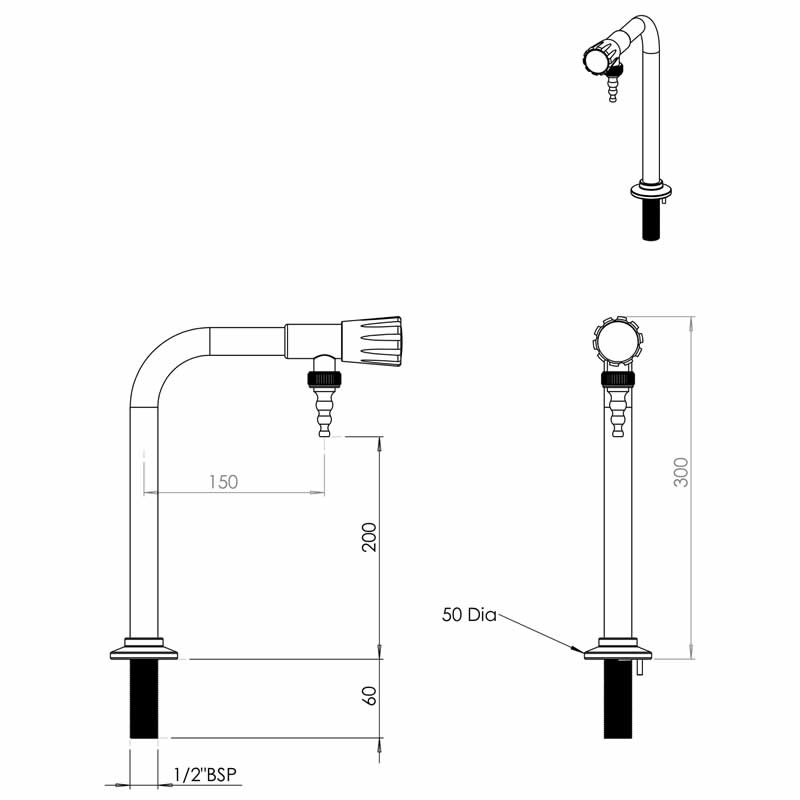

Connection and mounting: ½” BSP male flat ended shank x 60mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 22mm and 5mm diameter required template enclosed.
Pressure and Flow: Maximum pressure 100PSI (Recommended 20PSI) Flow Rate @ 20 psi = 12 Litre/min.
Spares: Hand wheel Assembly, Pt No 960180 Valve headwork, Pt No 950148
WRAS Approved
