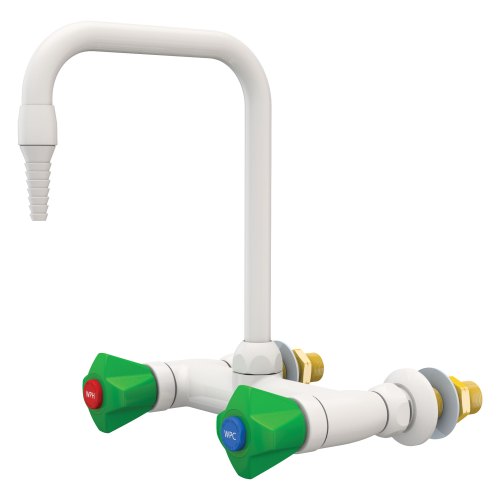

Mixer Lab Tap, Wall / Panel Mounted
BT1714WSA Specification Drawing
Application: Laboratory water mixer lab tap for hot and cold water.
Finish: Furnished with white powder coated finish as standard.
Mounting: Wall or Panel mounted.
Body: Cast brass.
Headworks: WaterSaver self-contained compression valve cartridges with replaceable stainless steel seats.
Handles: Molded nylon hooded style handles with index discs. Handles and indexes are color coded and marked per EN 13792.
Gooseneck: 6” (152mm) convertible rigid/swing gooseneck.
Inlets: (2) G1/2 male inlets on 180mm center dimension. Furnished with mounting shanks, locknuts and washers.

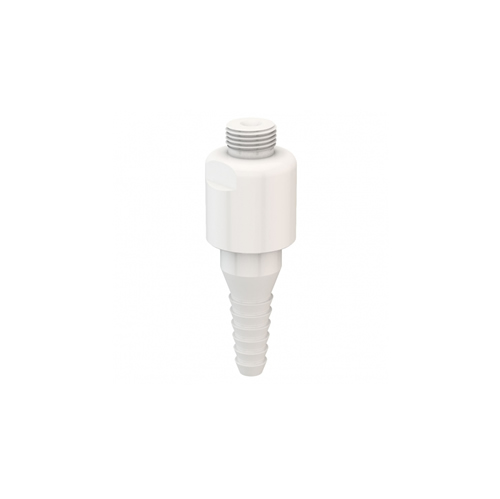

Outlet: G3/8 female outlet with removable anti-splash serrated hose end.
Quality Assurance: Fitting is fully assembled and factory tested prior to shipment. 10 bar (150 PSI) test pressure and maximum working pressure.
